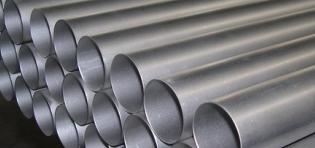

Titanium pipe / Titanium tube

Grades: CP, Gr.7(Ti-0.2Pb), Gr.9(Ti-3Al-2.5V), Gr.12(Ti-0.3Mo-0.8Ni) Specifications: ASTM B338, ASME SB338, ASTM B861, ASTM SB861 We deliver seamless pipes from 1/8” to and including 3” (88.9mm). Pipes with very heavy wall thickness can be made out of round bar, drilled or extruded to size. Tubes with OD and wall thickness outside standard gauges can be made upon request. Click here to calculate weight of titanium tube Download pdf file of titanium pipe

Wall Thickness (inches)			Titanium Pipe Schedule ANSI/ASME B36.19 (for S Sizes) B36.10 (for non-S sizes)
Weight per foot (pounds)

NPS Desig.	O.D. (in)	Nominal Wall Thickness
NPS Desig.	O.D. (in)	5	5S	10	10S	40	40S	80	80S
1/8	0.405	0.035	x	0.049	0.049	0.068	0.068	0.095	0.095
1/8	0.405	0.080	x	0.107	0.107	0.141	0.141	0.181	0.181
1/4	0.540	0.049	x	0.065	0.065	0.088	0.088	0.119	0.119
1/4	0.540	0.148	x	0.190	0.190	0.244	0.244	0.308	0.308
3/8	0.675	0.049	x	0.065	0.065	0.091	0.091	0.126	0.126
3/8	0.675	0.188	x	0.244	0.244	0.327	0.327	0.425	0.425
1/2	0.840	0.065	0.065	0.083	0.083	0.109	0.109	0.147	0.147
1/2	0.840	0.310	0.310	0.386	0.386	0.490	0.490	0.626	0.626
3/4	1.050	0.065	0.065	0.083	0.083	0.113	0.113	0.154	0.154
3/4	1.050	0.393	0.393	0.493	0.493	0.651	0.651	0.848	0.848
1	1.315	0.065	0.065	0.109	0.109	0.133	0.133	0.179	0.179
1	1.315	0.499	0.499	0.808	0.808	0.966	0.966	1.250	1.250
1-1/4	1.660	0.065	0.065	0.109	0.109	0.140	0.140	0.191	0.191
1-1/4	1.660	0.637	0.637	1.039	1.039	1.308	1.308	1.724	1.724
1-1/2	1.900	0.065	0.065	0.109	0.109	0.145	0.145	0.200	0.200
1-1/2	1.900	0.733	0.733	1.200	1.200	1.564	1.564	2.089	2.089
2	2.375	0.065	0.065	0.109	0.109	0.154	0.154	0.218	0.218
2	2.375	0.923	0.923	1.518	1.518	2.102	2.102	2.890	2.890
2-1/2	2.875	0.083	0.083	0.120	0.120	0.203	0.203	0.276	0.276
2-1/2	2.875	1.424	1.424	2.032	2.032	3.333	3.333	4.408	4.408
3	3.500	0.083	0.083	0.120	0.120	0.216	0.216	0.300	0.300
3	3.500	1.743	1.743	2.492	2.492	4.359	4.359	5.899	5.899
3-1/2	4.000	0.083	0.083	0.120	0.120	0.226	0.226	0.318	0.318
3-1/2	4.000	1.998	1.998	2.861	2.861	5.241	5.241	7.195	7.195
4	4.500	0.083	0.083	0.120	0.120	0.237	0.237	0.337	0.337
4	4.500	2.253	2.253	3.230	3.230	6.208	6.208	8.621	8.621
5	5.563	0.109	0.109	0.134	0.134	0.258	0.258	0.375	0.375
5	5.563	3.653	3.653	4.470	4.470	8.411	8.411	11.955	11.955
6	6.625	0.109	0.109	0.134	0.134	0.280	0.280	0.432	0.432
6	6.625	4.364	4.364	5.345	5.345	10.917	10.917	16.440	16.440
